fmt100

Special and small waterproof GNSS tracker with built-in accelerometer.

Allows device to work without external power source

Crash detection according to accelerometer data

Bluetooth for external devices and Low Energy sensors

Built-in accelerometer for accurate crash trace data

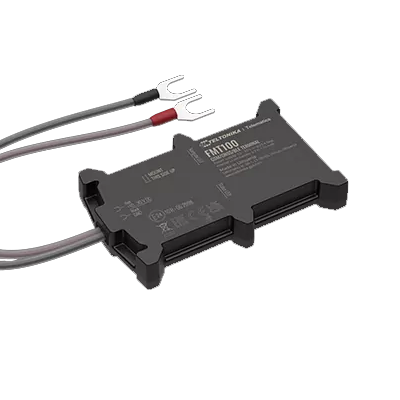

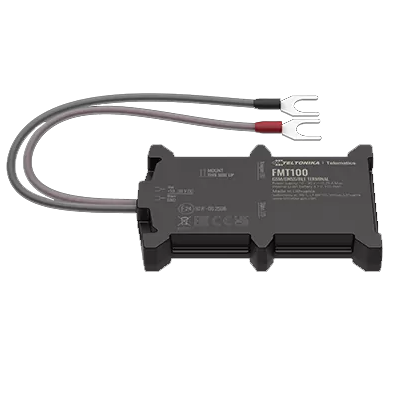

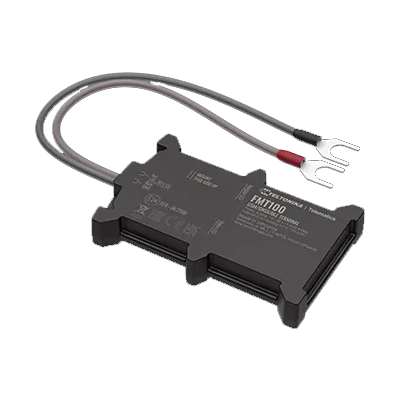

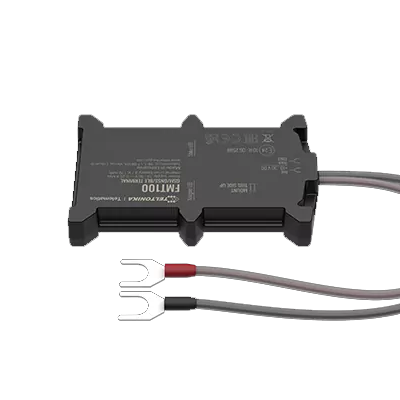

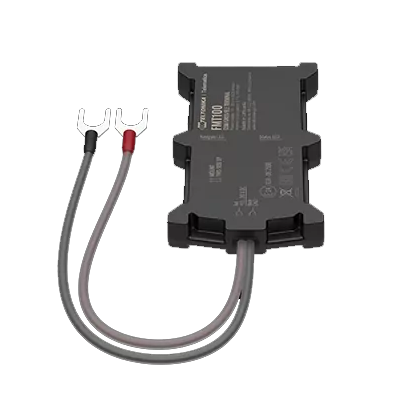

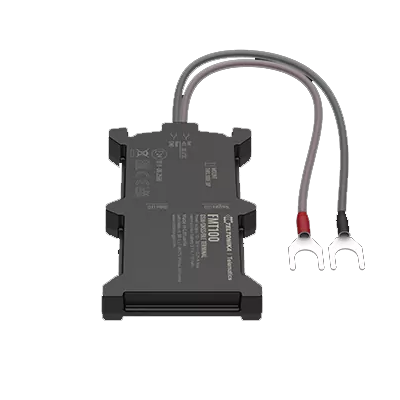

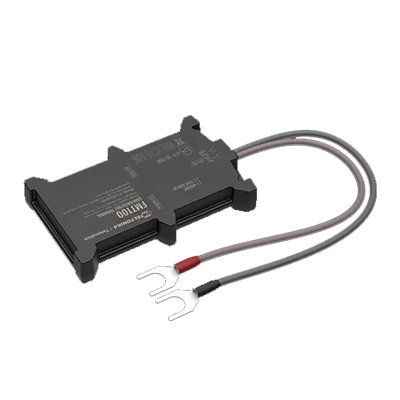

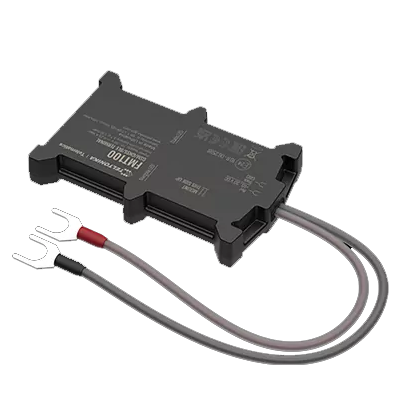

Teltonika FMT100 small, smart and waterproof GNSS SPECIAL tracker with Bluetooth connectivity and internal backup battery. Biggest in its class internal High Gain GNSS antenna allows mounting directly on car battery under the hood. FMT100 is equipped with special clamp connector for fast power cable connection to the car battery. Solid waterproof case and built-in accelerometer sensor with extremely accurate crash trace functionality makes this device perfectly suitable for insurance market solutions.

MODULE

Name Teltonika TM2500

Technology GSM/GPRS/GNSS/BLUETOOTH

GNSS

GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Receiver Tracking: 33

Tracking sensitivity -165 dBM

Accuracy 2.5m CEP

Hot start 1 s

Warm start 25 s

Cold start 35 s

CELLULAR

Technology GSM

2G bands Quad-band 850 / 900 / 1800 / 1900 MHz

Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B

Data support SMS (text/data)

POWER

Supply voltage range 10 - 30 V DC with overvoltage protection

Internal Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

BLUETOOTH

Specification 4.0 + LE

Supported peripherals Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support

PHYSICAL SPECIFICATION

Dimensions 65 x 56,6 x 20,6 mm (L x W x H)

Weight 55 g

OPERATING ENVIRONMENT

Operating temperature (without battery) -40 °C to +85 °C

Storage temperature (without battery) -40 °C to +85 °C

Operating humidity 5% to 95% non-condensing

Ingress Protection Rating IP41

Battery charge temperature -0 °C to +45 °C

Battery discharge temperature -20 °C to +60 °C

Battery storage temperature -20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months

INTERFACE

Digital Inputs 3

Negative Inputs 1 (Digital Input 2)

Impulse Inputs 2 (Digital Input 1, Digital Input 2)

Digital Outputs 2

Analog Inputs 2

CAN interfaces 2

1-Wire 1 (1-Wire data)

GNSS antenna Internal High Gain

Cellular antenna Internal High Gain

USB 2.0 Micro-USB

LED indication 3 status LED lights

SIM Micro-SIM + eSIM

Memory 128MB internal flash memory

FEATURES

CAN Data Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position

Sensors Accelerometer

Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)

SMS Configuration, Events, DOUT control, Debug

GPRS commands Configuration, DOUT control, Debug

Time Synchronization GNSS, NITZ, NTP

Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM

Teltonika Configurator [EN]

FMB PC drivers
Updated 2018-02-07
