fmb140

GPRS/GNSS TRACKER WITH CAN data reading feature

CAN data reading from light vehicles, buses, coaches and trucks

Real fuel consumption and level, full mileage, engine temperature and more

CAN data reading from agriculture and special transport*

Bluetooth for external devices and Low Energy sensors

Configurable DIN/AIN for flexible remote monitoring and control

Negative input will allow easier installation of accessories

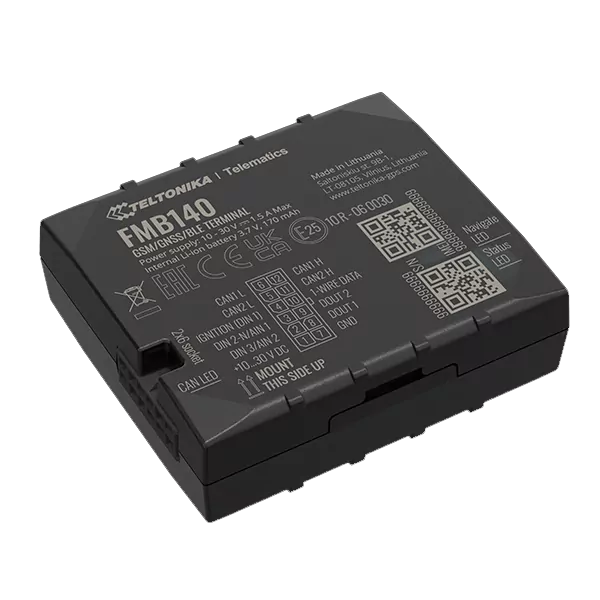

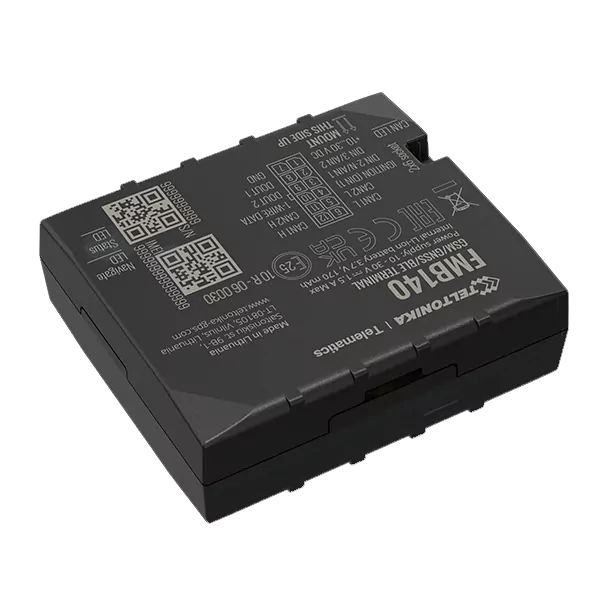

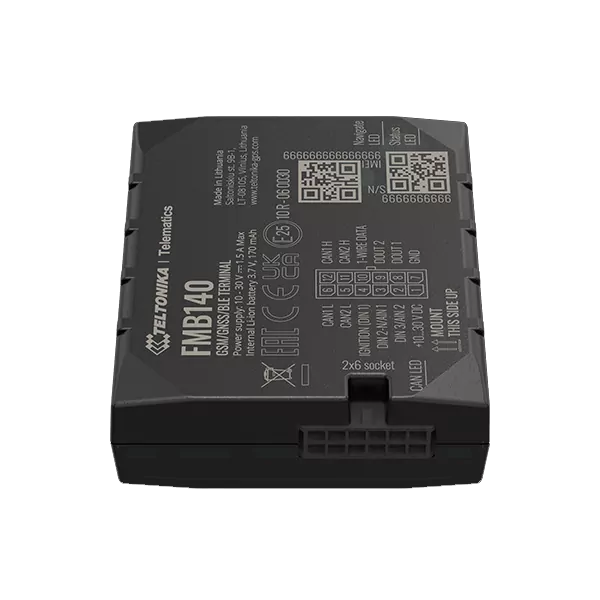

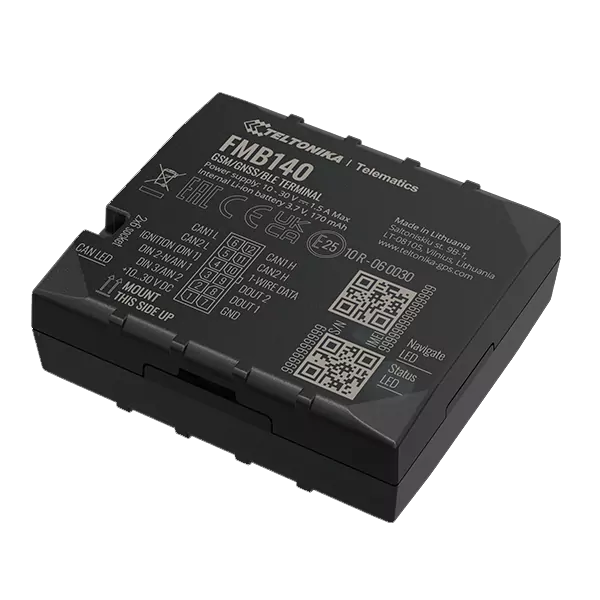

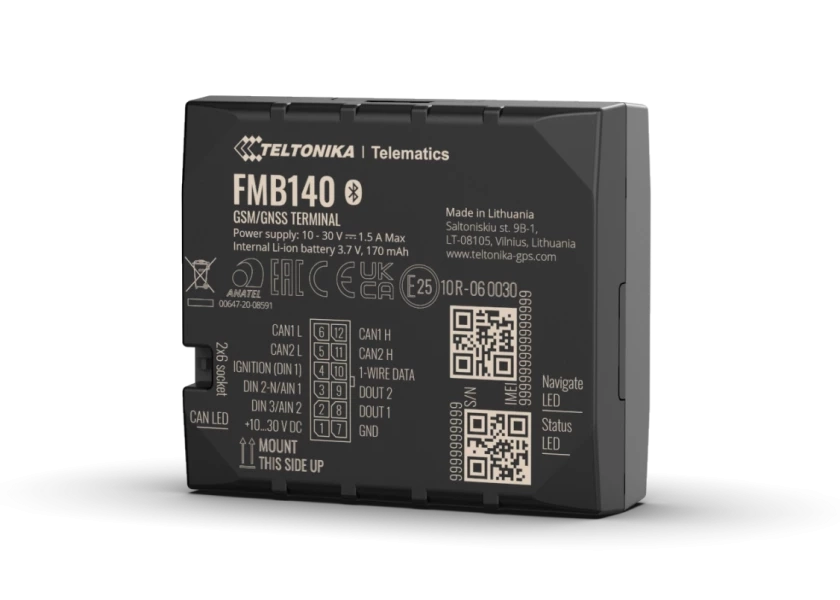

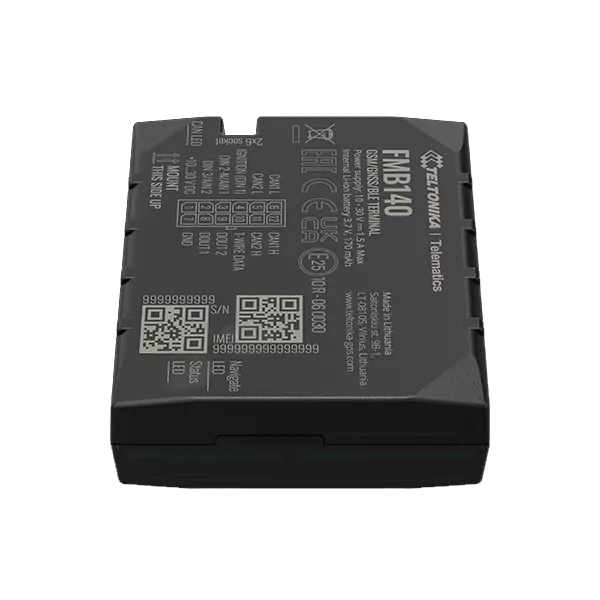

FMB140 is an ADVANCED GSM/GNSS/Bluetooth tracker with integrated CAN data processor. It is compact 2 in 1 solution: GPS tracker and CAN adapter inside! Device allows to read CAN data from a wide range of various vehicles, including light & electric vehicles, trucks, buses and special machinery. Depending on exact software version FMB140 can be used in advanced applications as heavy logistics, delivery services, utility transport. Two options available to fulfill any business demands:

1: LV-CAN200 option – default software version with LV-CAN200 parameters, including fuel level, consumption, odometer, CAN speed, pedal position, Supported vehicle types: light vehicles, trucks, buses.

2: ALL-CAN300 option* – advanced software version allows to read more parameters than default version. Available additional parameters include AdBlue level, engine lifetime, airbag. Supported vehicle types: light vehicles, trucks, buses + electric vehicles, agriculture, construction, forest, utility & special machineries.

FMB140 supports Bluetooth 4.0 LE protocol, which lets you connect various external devices and Bluetooth low energy sensors. New device is a major improvement for telematics with easier installation and flexibility to choose proper set of features without a change of hardware.

MODULE

Name Teltonika TM2500

Technology GSM/GPRS/GNSS/BLUETOOTH

GNSS

GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Receiver Tracking: 33

Tracking sensitivity -165 dBM

Accuracy 2.5m CEP

Hot start 1 s

Warm start 25 s

Cold start 35 s

CELLULAR

Technology GSM

2G bands Quad-band 850 / 900 / 1800 / 1900 MHz

Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B

Data support SMS (text/data)

POWER

Supply voltage range 10 - 30 V DC with overvoltage protection

Internal Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

BLUETOOTH

Specification 4.0 + LE

Supported peripherals Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support

PHYSICAL SPECIFICATION

Dimensions 65 x 56,6 x 20,6 mm (L x W x H)

Weight 55 g

OPERATING ENVIRONMENT

Operating temperature (without battery) -40 °C to +85 °C

Storage temperature (without battery) -40 °C to +85 °C

Operating humidity 5% to 95% non-condensing

Ingress Protection Rating IP41

Battery charge temperature -0 °C to +45 °C

Battery discharge temperature -20 °C to +60 °C

Battery storage temperature -20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months

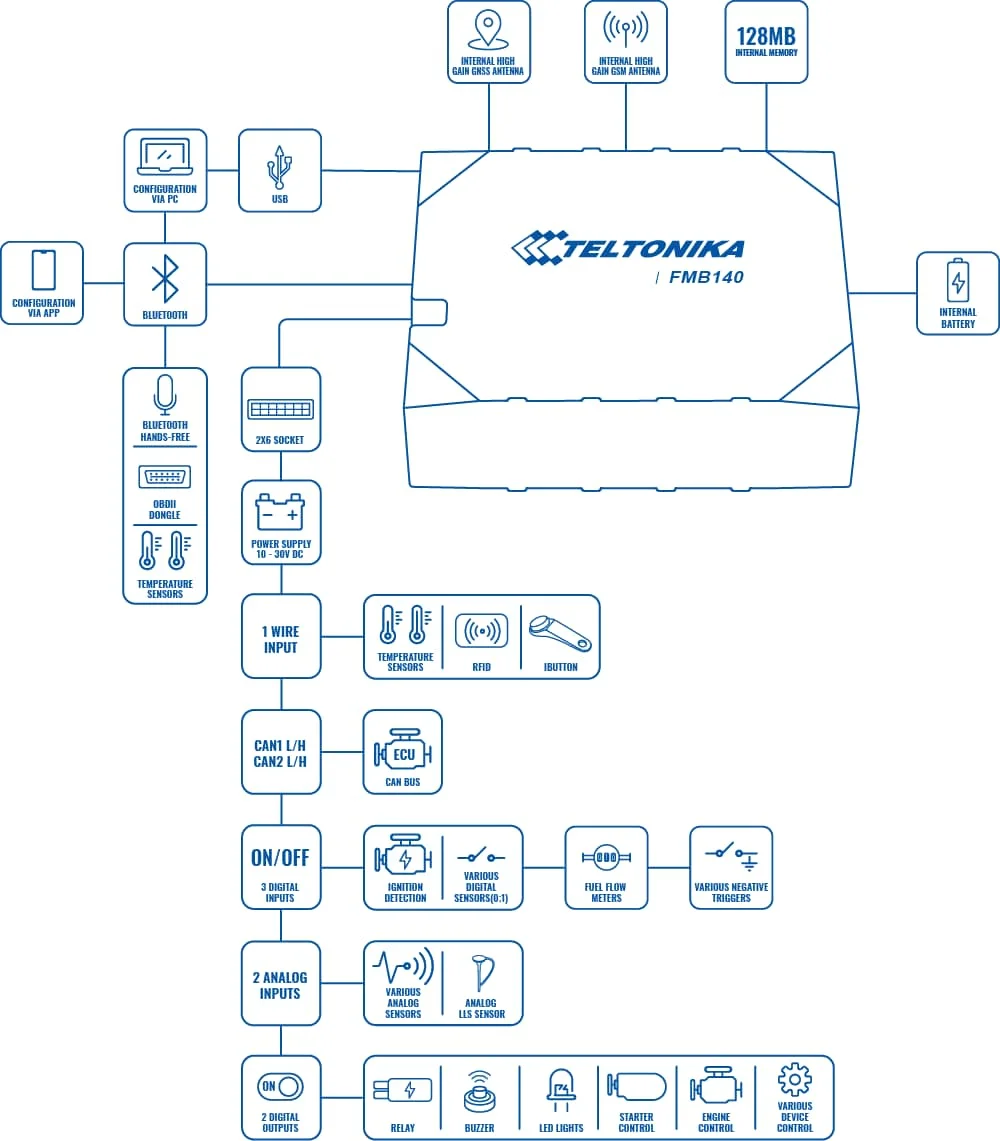

INTERFACE

Digital Inputs 3

Negative Inputs 1 (Digital Input 2)

Impulse Inputs 2 (Digital Input 1, Digital Input 2)

Digital Outputs 2

Analog Inputs 2

CAN interfaces 2

1-Wire 1 (1-Wire data)

GNSS antenna Internal High Gain

Cellular antenna Internal High Gain

USB 2.0 Micro-USB

LED indication 3 status LED lights

SIM Micro-SIM + eSIM

Memory 128MB internal flash memory

FEATURES

CAN Data Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position

Sensors Accelerometer

Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)

SMS Configuration, Events, DOUT control, Debug

GPRS commands Configuration, DOUT control, Debug

Time Synchronization GNSS, NITZ, NTP

Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM
