fmb003

Ultra-small OBDII Plug and Play device with GNSS, GSM, BLE 4.0 connectivity and CAN bus data reading capability!

Our smallest GNSS tracker for rich connected car applications

Crash detection according to accelerometer data

Bluetooth for external devices and Low Energy sensors

OBD OEM parameters (PIDs) – Real odometer and fuel level

Supported vehicles and data list

Standard OBDII data reading from vehicle ECU

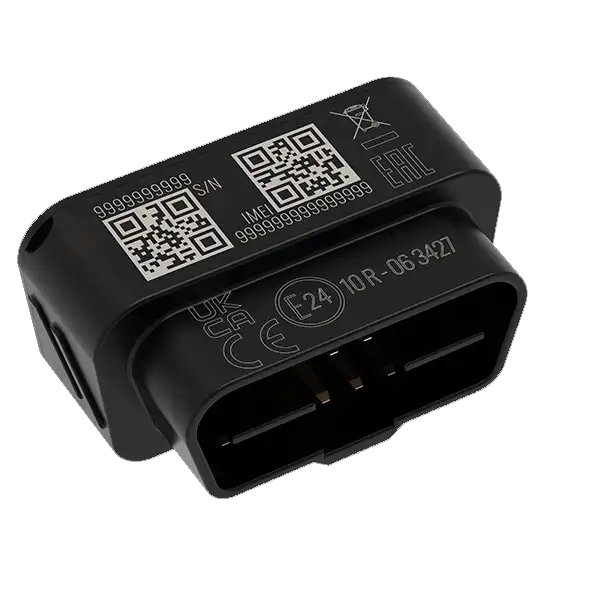

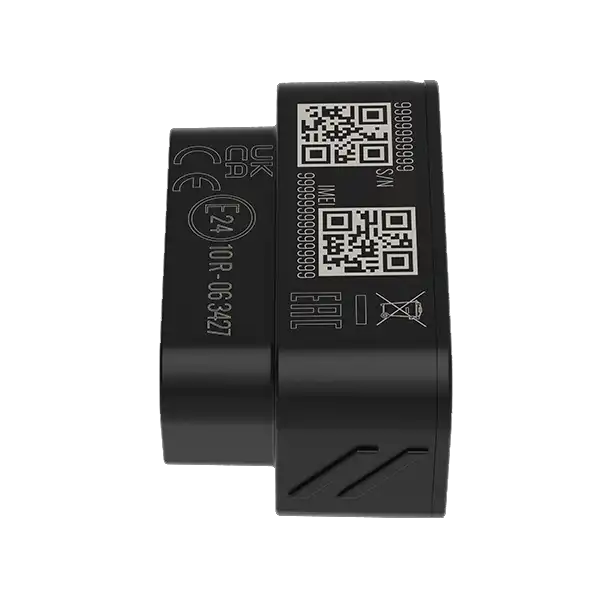

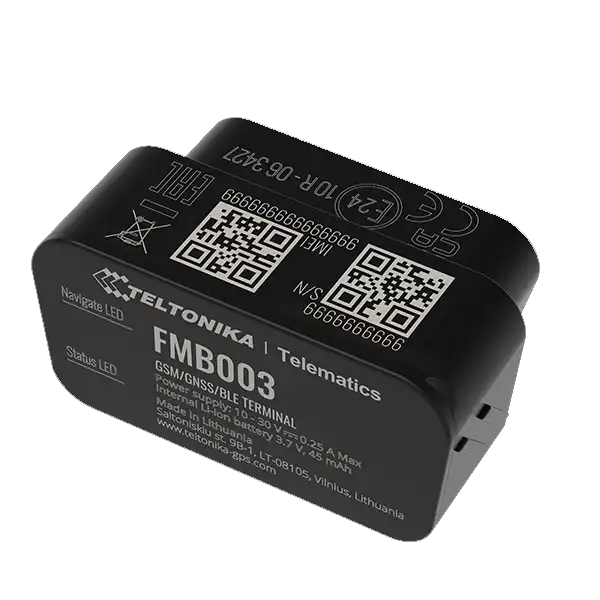

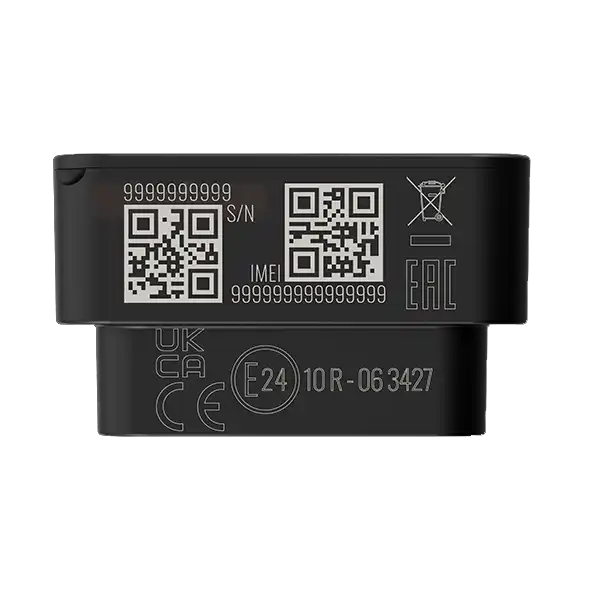

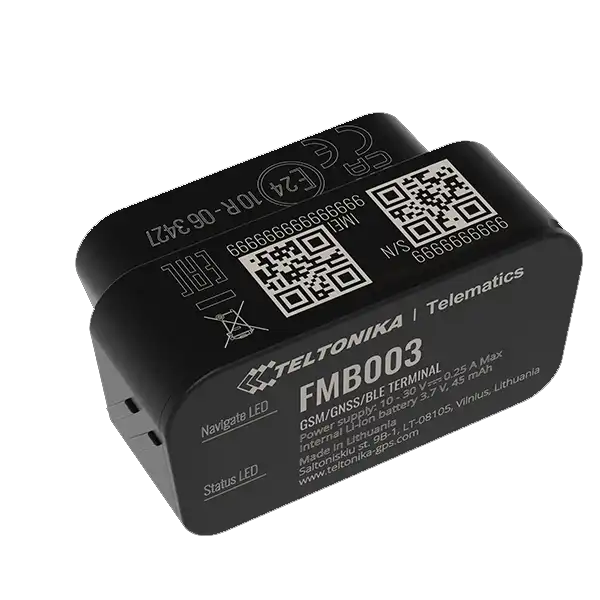

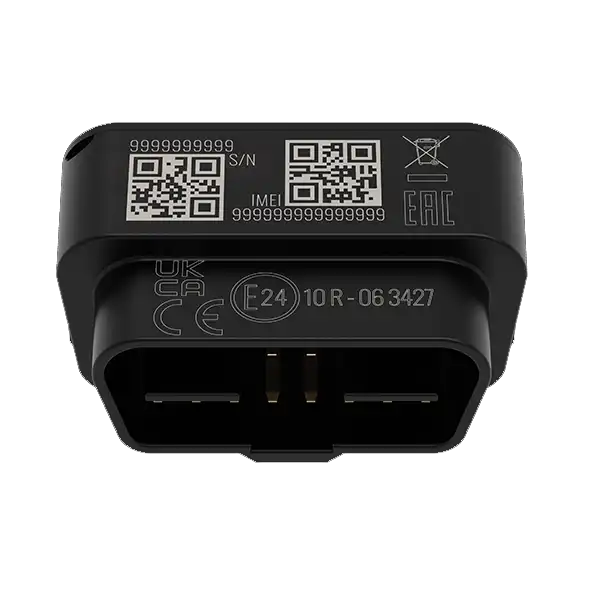

FMB003 is an ultra-small plug and play device dedicated to OBD applications of next generation. The main feature of FMB003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device, you will be able to read Real Odometer and Real Fuel Level data. What’s more, our device comes with the supported vehicles and data list, so no need to guess anymore – now you know what data you can read from a specific vehicle.

It is a perfect tracker for a wide range of use cases – including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and more.

The device supports various BLE 4.0 sensors, beacons, hands-free headsets, firmware and configuration updates via Bluetooth, thus, expanding its already rich set of features.

FMB003 – setting a new standard in OBD tracking!

MODULE
Name Teltonika TM2500
Technology GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver Tracking: 33
Tracking sensitivity -165 dBM
Accuracy 2.5m CEP
Hot start 1 s
Warm start 25 s
Cold start 35 s
CELLULAR
Technology GSM
2G bands Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support SMS (text/data)
POWER
Supply voltage range 10 - 30 V DC with overvoltage protection
Internal Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions 65 x 56,6 x 20,6 mm (L x W x H)
Weight 55 g
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature -0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
INTERFACE
Digital Inputs 3
Negative Inputs 1 (Digital Input 2)
Impulse Inputs 2 (Digital Input 1, Digital Input 2)
Digital Outputs 2
Analog Inputs 2
CAN interfaces 2
1-Wire 1 (1-Wire data)
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 3 status LED lights
SIM Micro-SIM + eSIM
Memory 128MB internal flash memory
FEATURES
CAN Data Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM
